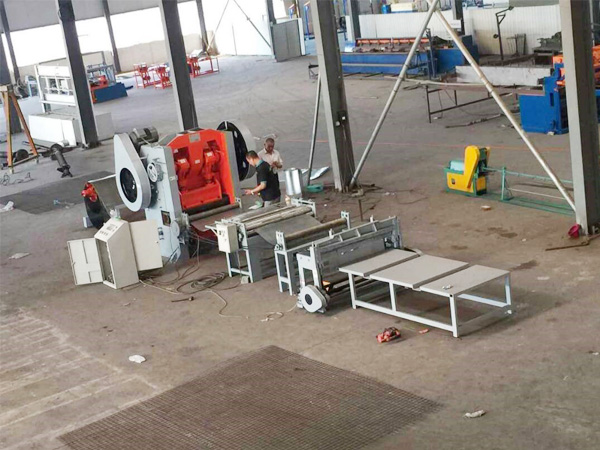

1、Equipment components: uncoiler machine, punching machine machine,cutting mesh machine,electric box,one set mould
2、main parameter( uncoiler machine)
|
The width
|
1.50m （other width can custom-made ）
|
|
Load bearing
|
3T
|
|
dimension
|
1.65*1.8*1.5m
|
|
The weight
|
1.2T
|
|
The power
|
5.5kw
|
3.punching machine and cutting mesh machine
|
type
|
160T(custom)
|
|
The thickness of sheet
|
1.5mm
|
|
Slide stroke
|
160mm
|
|
The width of punching machine
|
1.5m
|
|
Power
|
15kw
|
|
speed
|
35-50time/mins
|
|
Distance between bolster surface and floor
|
1.03m
|
|
dimension
|
2.7*1.9*4.1m
|
|
weight
|
2T
|
|
The width of cutting mesh machine
|
1.5m
|
|
The power of cutting mesh machine
|
3.5kw
|
